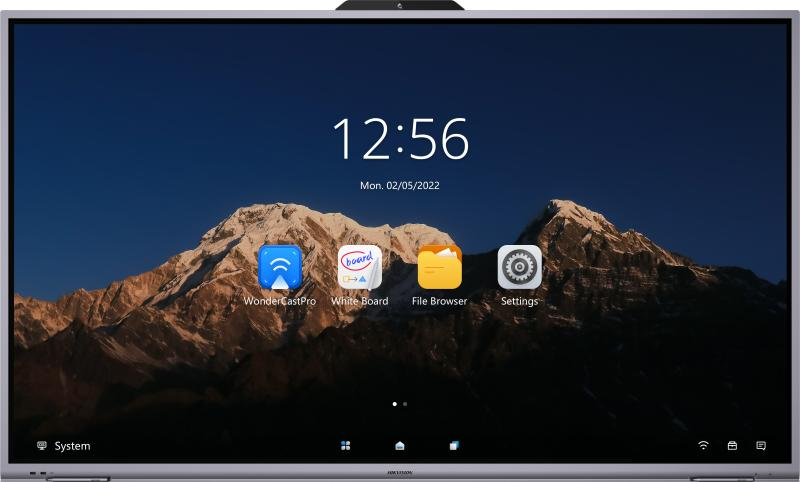

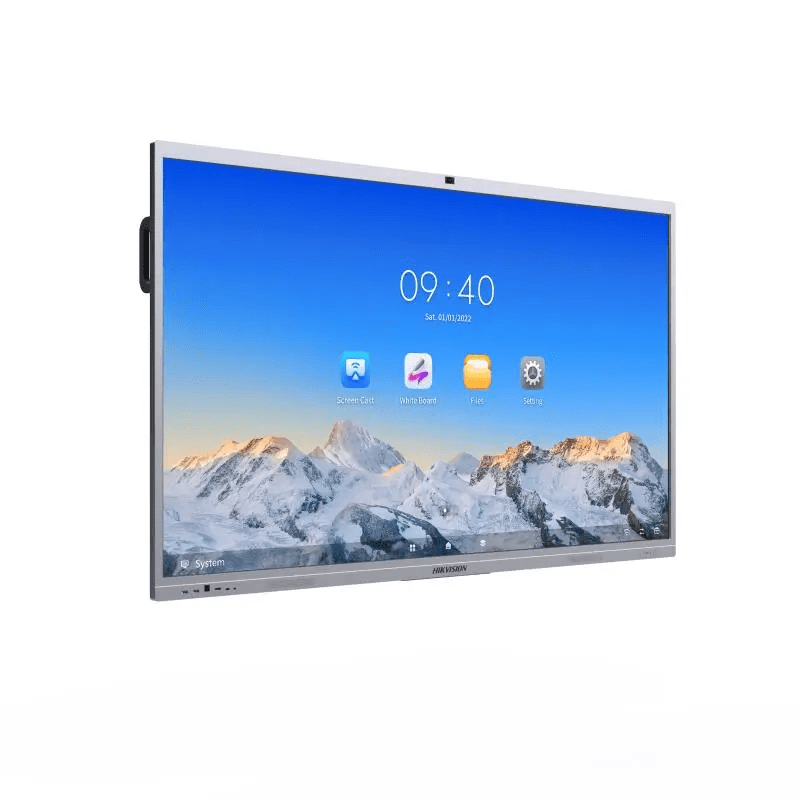

Hikvision 75" Interactive LED 4k UHD with Integrated Camera

75-inch 4K Interactive Flat Panel with 8MP camera

• Ultra HD display with up to 3840 × 2160 resolution of input signal available.
• 20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.
• Built-in Wi-Fi projection without any cable connection.
• Built-in interactive whiteboard system allows annotating and sharing by QR code.
• Looping-out display available.
• Various audio and video interfaces for device access.
• Built-in network switch chip saves a network switch.
• Built-in Android 11 system provides kinds of applications.
• Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
• Ultra-thin design with aluminum profile frame.

Specification:

• Display

• Screen Size 75 inch
• Backlight DLED
• Pixel Pitch 0.124 (H) × 0.372 (V) mm
• Resolution 3840 × 2160@60 Hz
• Brightness 350 cd/m²（Typ.）
• Color Depth 10 bit
• Contrast Ratio 5000 : 1 (Typ.)
• Response Time 6 ms
• Color Gamut 90% NTSC (CIE1931) (Typ.)
• Refresh Rate 60 Hz
• Viewing Angle 178° (H) / 178° (V)
• Surface Haze 25%Haze
• Display Area 1650.24mm x 928.26mm
• Working Duration 7 * 16 H

• Touch

• Type Infrared touch screen
• Glass AG smooth glass
• Touch Point Max 45 point multi-touch
• Touch Response Time＜ 10 ms
• Touch Precision± 1 mm (≥ 90% touching area)

• Built-In System

• Operation System Android 11
• Processor A72*2 + A53*4, 1.8 GHz
• Memory 4 GB
• Built-In Storage 64 GB
• NIC Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands

• Camera

• Pixel 8 MP
• Camera Function Smart switch between Android system and OPS
• Field Angle 120°(diagonal), 110°(horizontal), 66°(vertical)
• Distortion ≤6%
• Camera Resolution Ratio Up to 4K

• Microphone

• Specification Omni-directional 6-array layout
• Mic Function Echo reduction and smart noise-cancellation
• Voice Distance 8 m
• Sampling Rate 32 K
• Mic Sampling Rate 16 bit

• Internal Function

• Loudspeaker Built-in 2 × 16 W loudspeaker
• Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version

• Interface

• Video & Audio Input HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1
• Video & Audio Output HDMI OUT（HDMI 2.0） × 1, MAX 4K @60 Hz, LINE OUT × 1
• Control Interface RS-232 × 1, Touch-USB × 1
• Network Interface RJ45 (1000 Mbps port) × 2
• Data Transmission Interface USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel

• Power

• Power Consumption ≤ 320 W (full load)
• Standby Consumption 0.5 W

• General

• Power 100 to 240 V, AC, 50/60 Hz
• Product Dimensions 1718 × 1046 × 87.5 mm
• Package Dimensions (W × H × D)1927 × 1212 × 254 mm
• Net Weight 52.25 kg
• Gross Weight 68.86 kg
• Lifespan 50000 hours


• Working Environment

• Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity 10% to 90% RH
